Cable Trays & Fittings

  • Home
  • Services
  • Cable Trays & Fittings

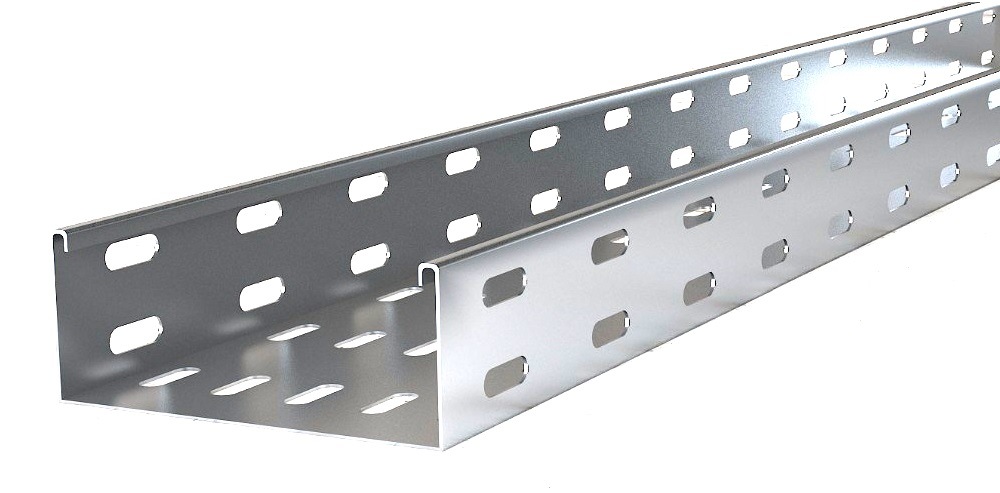

The Cable Tray system incorporates a Light Duty system used particularly for data, Fiber Optic and general light use areas, a Medium Duty system for light industrial/commercial applications and a Heavy Duty system for most industrial conditions. The standard range is offered in M.S to BS EN 10149-3:1996 and then Post Galvanized HDG to BS EN ISO 1461 (formerly BS729), ASTM-A123.

Need any help?

Work







Thumb

Cable Trays & Fittings

Cable-Tray is also available in other sizes and metals such as Stainless Steel in Grades 304 or 316 (L), Pre-Hot Dipped Galvanized Steel to BS EN 10142 and Aluminum AA1100.
A wide range of Fittings and Accessories and also available to complement and complete the range.
Materials & Finishes

  1. Cold rolled steel sheet to JIS G3141 SPCC SD/Hot-Rolled steel sheet to JIS G3131 SPHC (BSEN: 10149), Hot-dip galvanized BS EN ISO 1461(BS 729), ASTM-A123 after fabrication.
  2. Hot dip galvanized with using Hot Rolled Steel to BS 10149-3:1996, Cold Rolled Steel to BS EN 10130:2006 then post galvanizing as per BSEN 1461 (Formerly BS 729) ASTM A123 with Epoxy Powder Coated Or 3 Coat Wet Paint System.
  3. Pre-Galvanized zinc coated steel JIS G3302 equivalent to BS EN 10142 (BS 2989) (BS EN 10142 supersedes BS2989).
  4. Stainless Steel sheet to SUS 304, SUS 316 AISI Type 304 or AISI Type 316/316L.

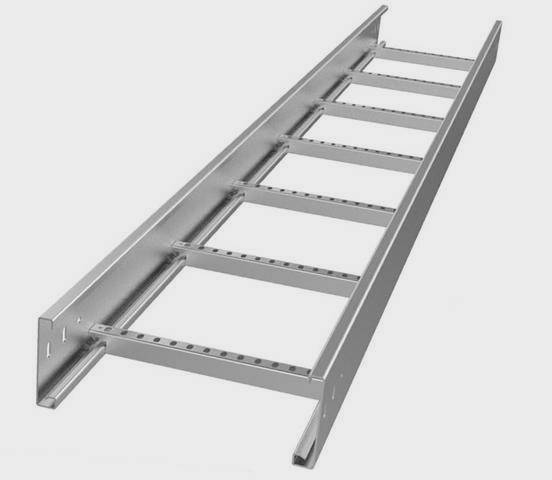

Cable Ladder & Fittings

Standard Widths: 100, 150, 225, 300, 450, 600, 750, 900, 1000-mm. Other widths are also available on request.
Cable Ladder is designed to give a maximum Cable Loading Capacity whilst retaining high strength. By utilizing high quality steel, Hot Rolled Steel to BS EN 10149-3:1996, Cold Rolled to BS EN 10130:2006 then Post Galvanizing to BS EN 1461 (formerly BS 729) ASTM-A123, we offer a high strength, competitively priced, corrosion protected Cable Ladder System for a variety of Industrial uses.
We have introduced new Marine Profile & C Profile cable ladder system which is light in weight, effective utilization of space and economical.
We also offer these Ladders in other metals such as Stainless Steel in Grades 304 or 316L, Aluminum and indifferent finishes viz. Epoxy Powder Coated and Wet Paint.
All fitting are offered at 300mm Radius as standard and others Radius available on request.
Standard rungs centers are 300mm, however other rung centers are also available on request.
A wide range of Fittings and Accessories are also available to complement and complete the range.
Materials & Finishes ::
  1. Hot dip galvanized with using Hot Rolled Steel to BS 10149-3: 1996, Cold Rolled Steel to BSEN 10130:2006 then post galvanizing as per BS EN 1461 (Formerly BS729)ASTM-A123.
  2. Hot dip galvanized with using Hot Rolled Steel to BS 10149-3:1996, Cold Rolled Steel to BS EN10130:2006 then post galvanizing as per BSEN 1461 (Formerly BS 729) ASTM A123 with Epoxy Powder Coated Or 3 Coat Wet Paint System.
  3. Stainless Steel Sheet to ASTM A240 type 304, 316L.

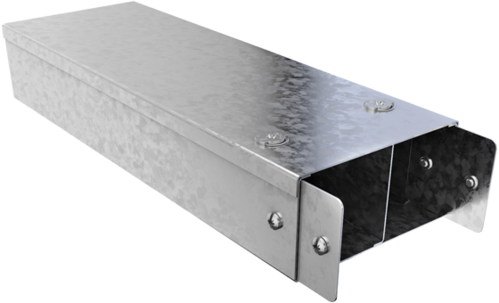

Cable Trunking & Fittings

Cable Trunking is designed to provide a simple method of containing lightweight and structured cables. It is designed to meet all the requirements of BS 4678 & BS 50085 We offer a comprehensive range of standard Surface Trunking in single or multi-compartment. Both the Trunking and the body are supplied in 3 meter lengths complete with coupler and all necessary fixing screws. We uses complete weldless joints and fixing arrangement. The system also ensures earth continuity between body & lid and take care of any variation in the sheet thickness & keep the lid & body fully secured. A wide range of fittings and accessories are also available to complement and complete the range.
Materials & Finishes ::
  1. Pre-Galvanized zinc coated steel JIS G3302 equivalent to BS EN 10142, (BS EN 10142 supersedes BS2989), ASTM A653.
  2. Pre-Galvanized zinc coated steel JIS G3302 equivalent to BS EN 10142, (BS EN 10142 supersedes BS2989), ASTM A653 with Epoxy Powder Coating with minimum film thickness 60 microns after fabrication.
  3. Hot dip galvanized with using Hot Rolled Steel to BS 10149-3: 1996, Cold Rolled Steel to BSEN 10130:2006 then post galvanizing as per BS EN 1461 (Formerly BS729), ASTM-A123.
  4. Stainless Steel Sheet to ASTM A240 type 304, 316L.

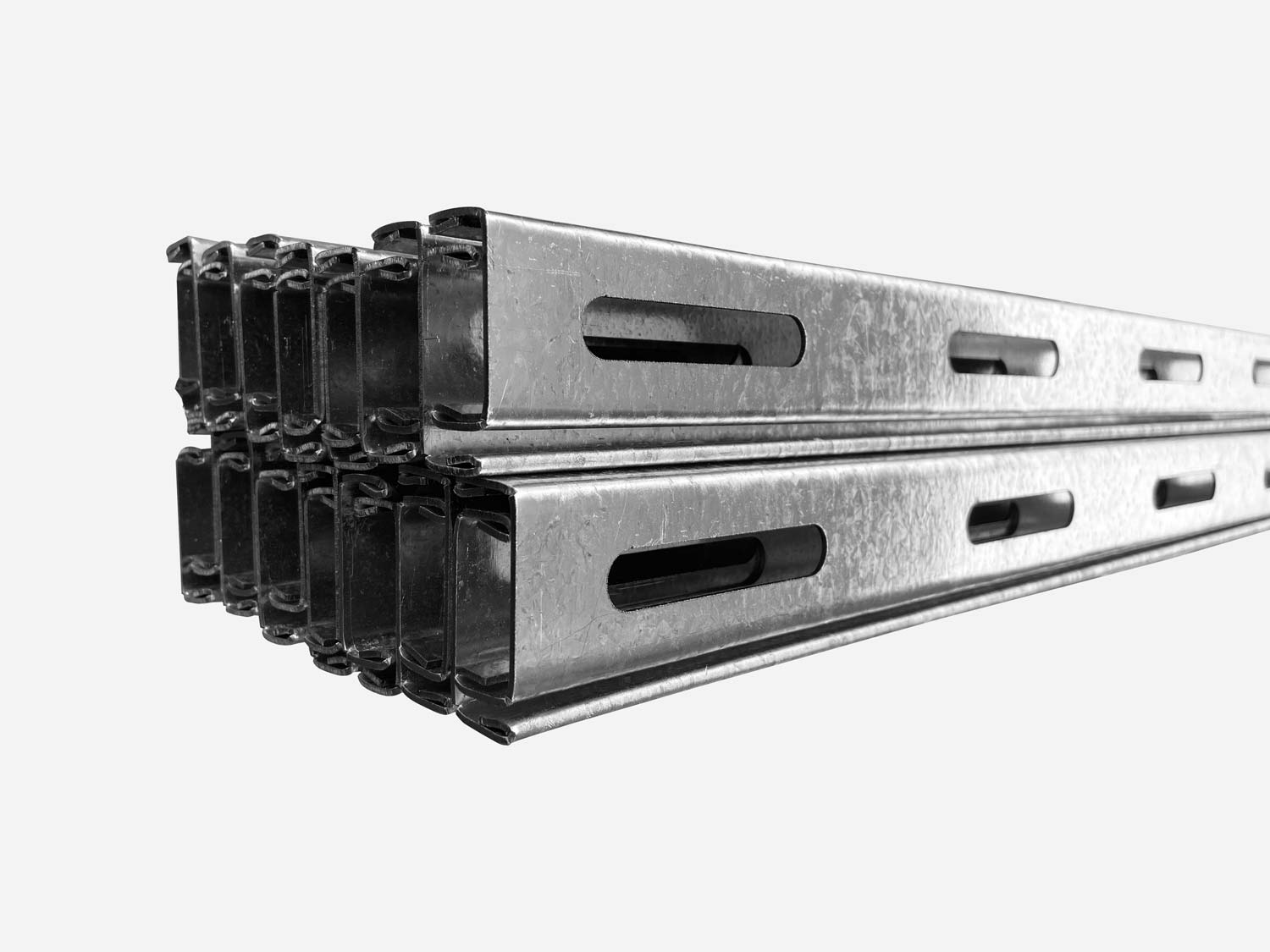

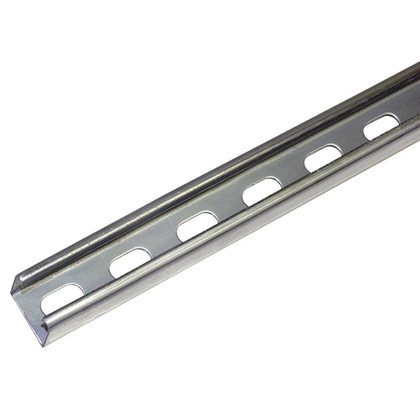

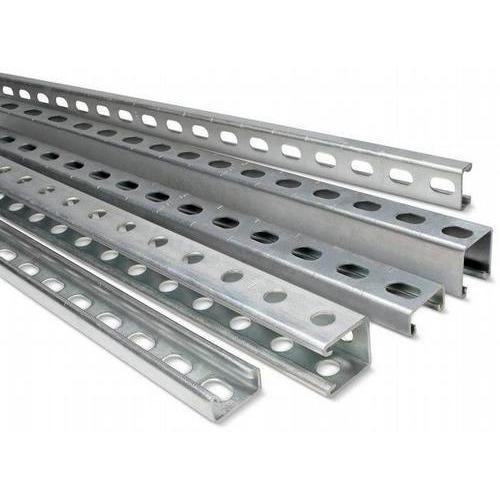

Channel Support & Bracketry System

Strut Metal Framing Channels are used extensively in the installation of Electrical systems such as Cable Ladders, Cable Trays and Trunking. For this purpose we offers a range of Channels, fittings and accessories to enable the quick, simple and cost effective installation of all Ladders, Tray and Trunking.
Available In ::
41x41x2.5 Part No: CH1-3H
41x21x2.5 Part No: CH1-3H
41x41x2.0 Part No: CH1-3H-2
41x21x2.0 Part No: CH1-3H-2
Hot Dip Galvanized finish to BS 729 Part1. Pre Galvanized to BS EN 10142.
Also available in Stainless Steel to BS EN 10088-2; 1995, 316L X2CrNiMo17-12-2.
