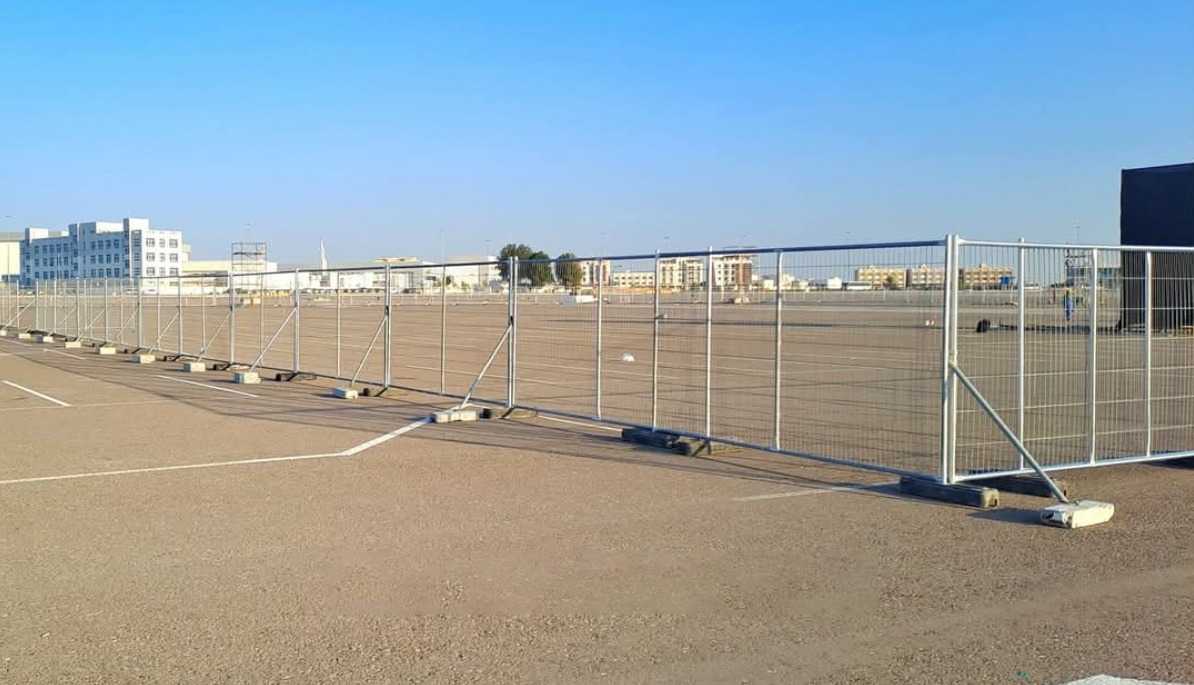

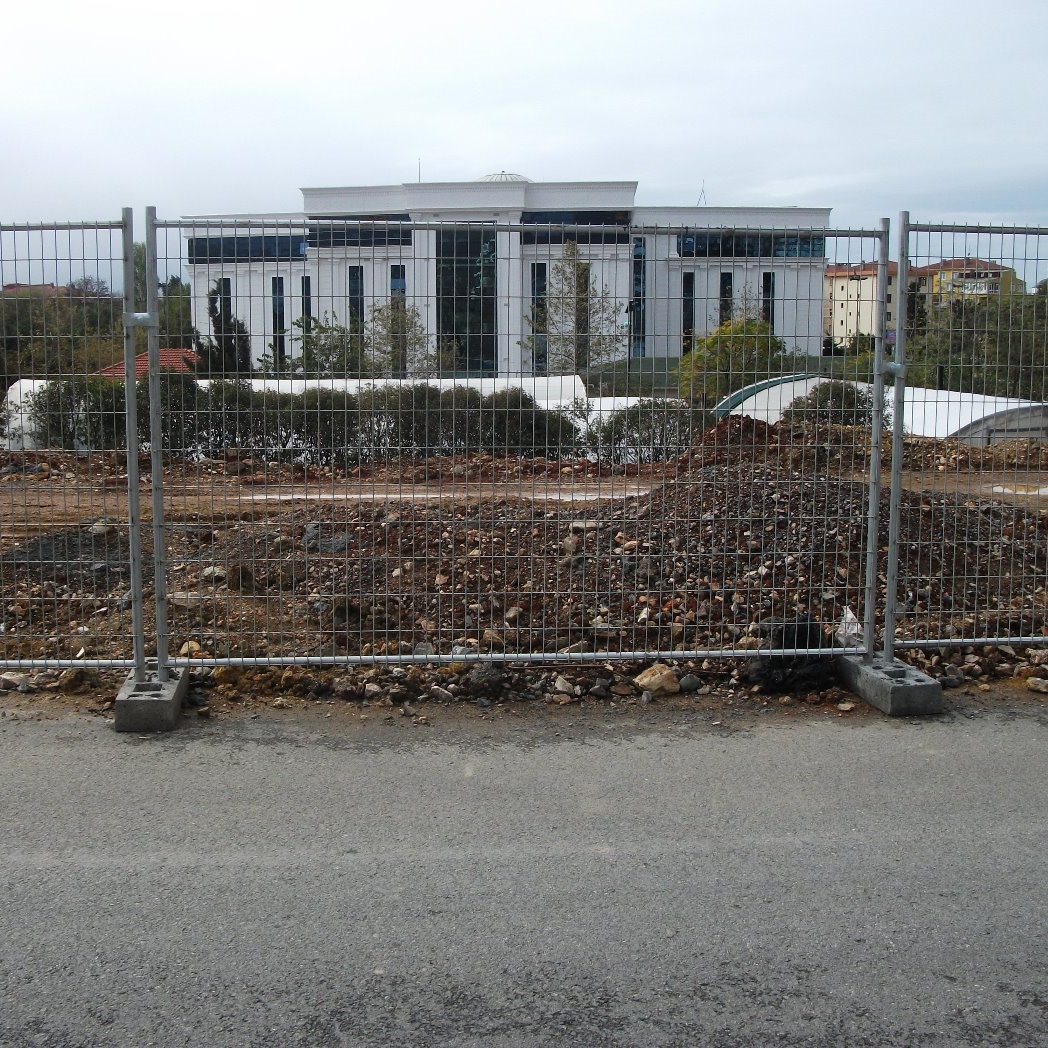

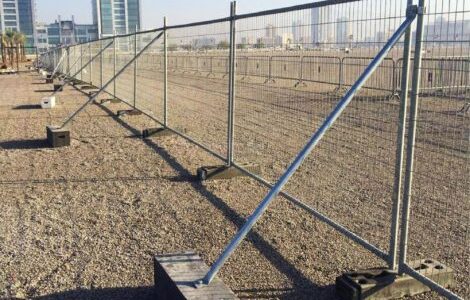

Heras Fence

Al Qasas Fence technical services best quality heras fence all over uae. We have variety of range from 2mtr-3.5mtr as per customer specification. Standard size all over uae we follow the below description. Heras Fence for Project: -

Fabrication & supply of Heras Fence as per below specifications:

1. Mesh opening :100 X 50mm
2. Wire Dia.: Horizontal :4mm, Vertical: 3mm
3. Clamp Standard 3mm
4. Frame Pipe: Horizontal: 42X1.1mm(T)
5. Vertical: 42X1.1mm(T)
6. Back support 2m x 42 OD x 1.1mm
7. Panel Size: 3500mm(W) X 2000mm(H)
8. Surface: Hot Dip Galvanized + Silver Color RAL 9006
9. PCC Foundation 600 x 200 x 200mm x 3.0mtr CC
